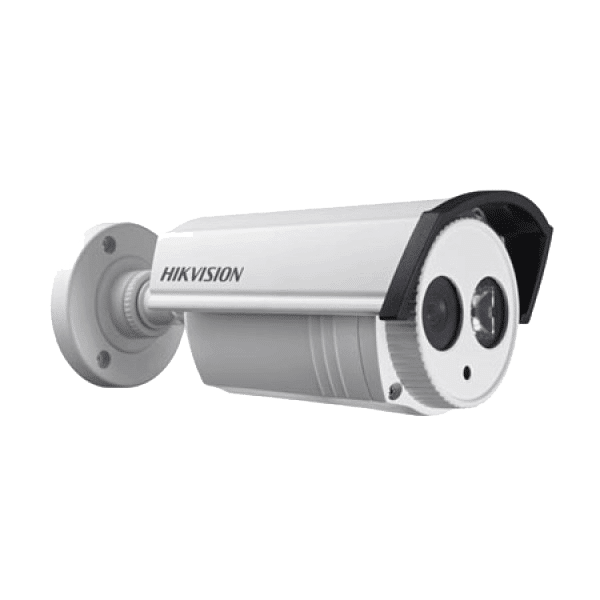

DS-2CE16D5T-IT3 กล้องวงจรปิด Hikvision 2MP

DS-2CE16D5T-IT3 กล้องวงจรปิด Hikvision ความละเอียด 2MP

DS-2CE16D5T-IT3 กล้องวงจรปิด Hikvision 2MP

ความละเอียดภาพ 1080P

Lens 3.6 mm.

EXIR IR, IR Length 40 m.

Support OSD Menu

Multi-language OSD, 3D DNR, Digital Zoom

Slow Shutter, Defog

DS-2CE16D5T-IT3
HD1080P Turbo HD EXIR Bullet Camera
• HD1080P Video Output
• Adopt HDTVI Technology
• True Day/Night
• OSD menu, 3D DNR, Smart IR
• EXIR technology, 40m IR distance
• IP66 weatherproof
• Up the Coax(via coaxial cable)
• 120 dB Wide Dynamic Range

Specifications

Camera | Lens | Image | Interface | General

Camera
• Image Sensor : 2MP CMOS Image Sensor
• Signal System : PAL/NTSC
• Effective Pixels : 1944(H)*1092(V)
• Min. Illumination : 0.01 Lux @(F1.2,AGC ON), 0Lux with IR
• Shutter Time : 1/25(1/30)s to 1/50,000 s

Lens
• Lens : 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mmoptional)
• Angle of View: 82.6°(3.6mm), 103.5°(2.8mm),54.4°(6mm), 38°(8mm), 24.4°(12mm), 18.9°(16mm)
• Lens Mount : M12

• Effective Pixels: 1944(H)*1092(V)
• White Balance: ATW, AWC-SET,Manual

Interface
• 1Analog HD output

General
• Dimension 94.6×83×210.8mm(3.72”×3.27”×8.30”)
• Power Supply : 12V DC±15%
• Working Temperature/Humidity : -30 °C –60 °C (-22 °F –140 °F)Humidity 90% or less (non-condensing)

Data Sheet >>> Download <<<
